Windows Active Directory homelab

The IT setup for Harbor Point Accounting, a fictional 20-person firm, on Windows Server 2025, followed by the day-to-day tickets a help desk or junior sysadmin would handle there.

Type: Personal learning lab
Platform: VirtualBox, one server and one PC
Stack: Windows Server 2025, Windows 11, PowerShell
Result: 6 tickets worked, 9 problems logged and fixed

Source and docs on GitHub Full troubleshooting log

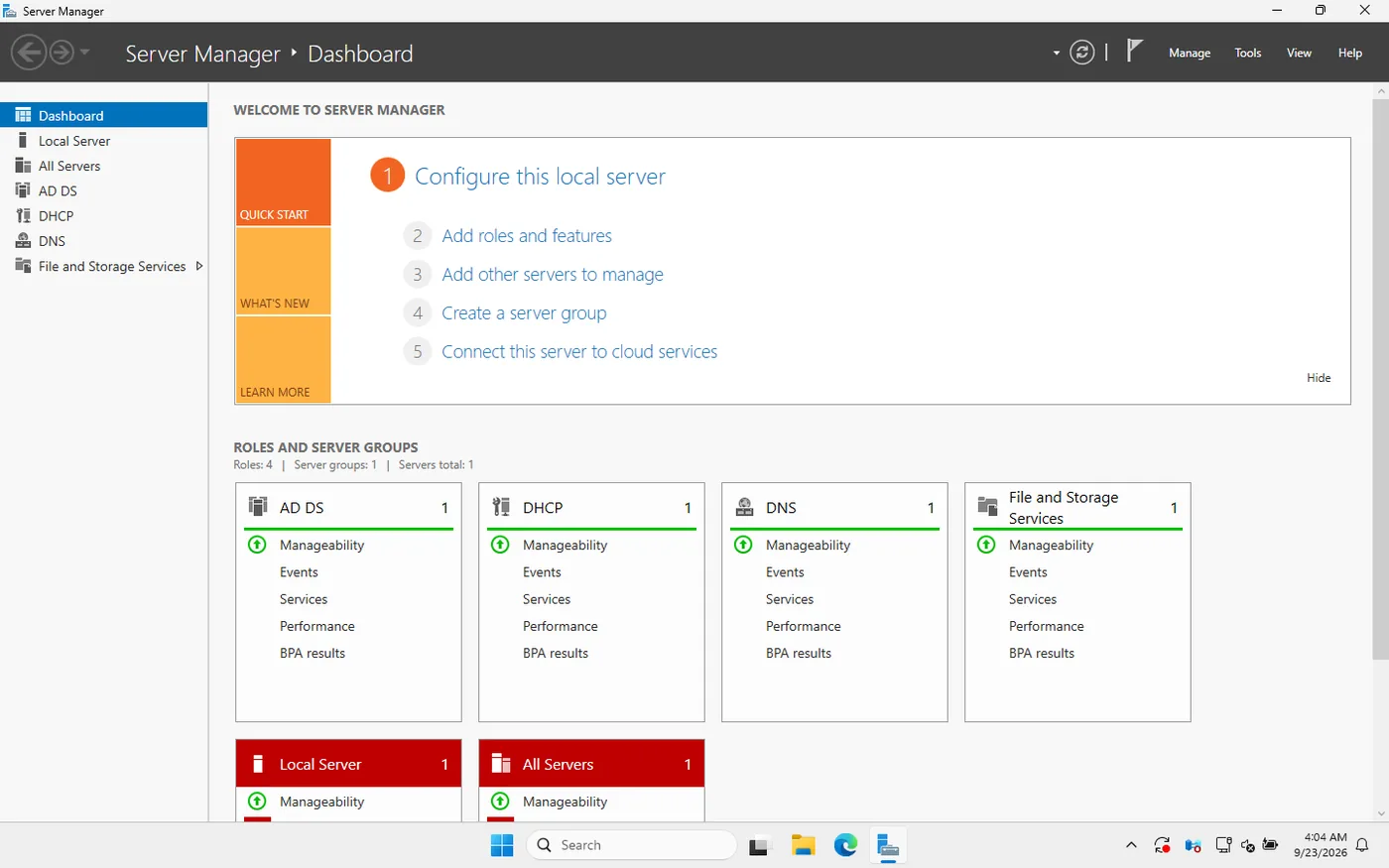

Server Manager dashboard on DC01 — DC01 after all fixes: Active Directory, DHCP, DNS and file services all healthy.

What I built

Domain. A new forest, harborpoint.internal, on Windows Server 2025, with AD-integrated DNS zones, a reverse lookup zone and forwarders.
DHCP. A scope for the office PCs with router, DNS and domain options, authorized in AD.
Users and OUs. 20 staff in six department OUs, separate adm. accounts for IT in their own OU, and a Disabled Users OU for leavers.
Groups. The AGDLP model: department groups go into share groups, and only share groups get folder permissions, so a staff change is a group change.
File shares. One share per department that only that department can open, plus a public share for everyone.
Group Policy. Password and lockout rules, idle screen lock, a logon banner and wallpaper, mapped drives by group, and USB storage blocked for Sales.
Delegation. The help desk group can reset passwords and unlock accounts, and nothing else.
Automation. PowerShell scripts for bulk user import, onboarding, offboarding and a stale-account report.

What an employee sees

Rachel Kim, Sales Manager, signs in to the Windows 11 PC: company wallpaper, her P: and S: drives mapped by group, the Accounting share denied and Registry Editor blocked. All of it comes from Active Directory and Group Policy.

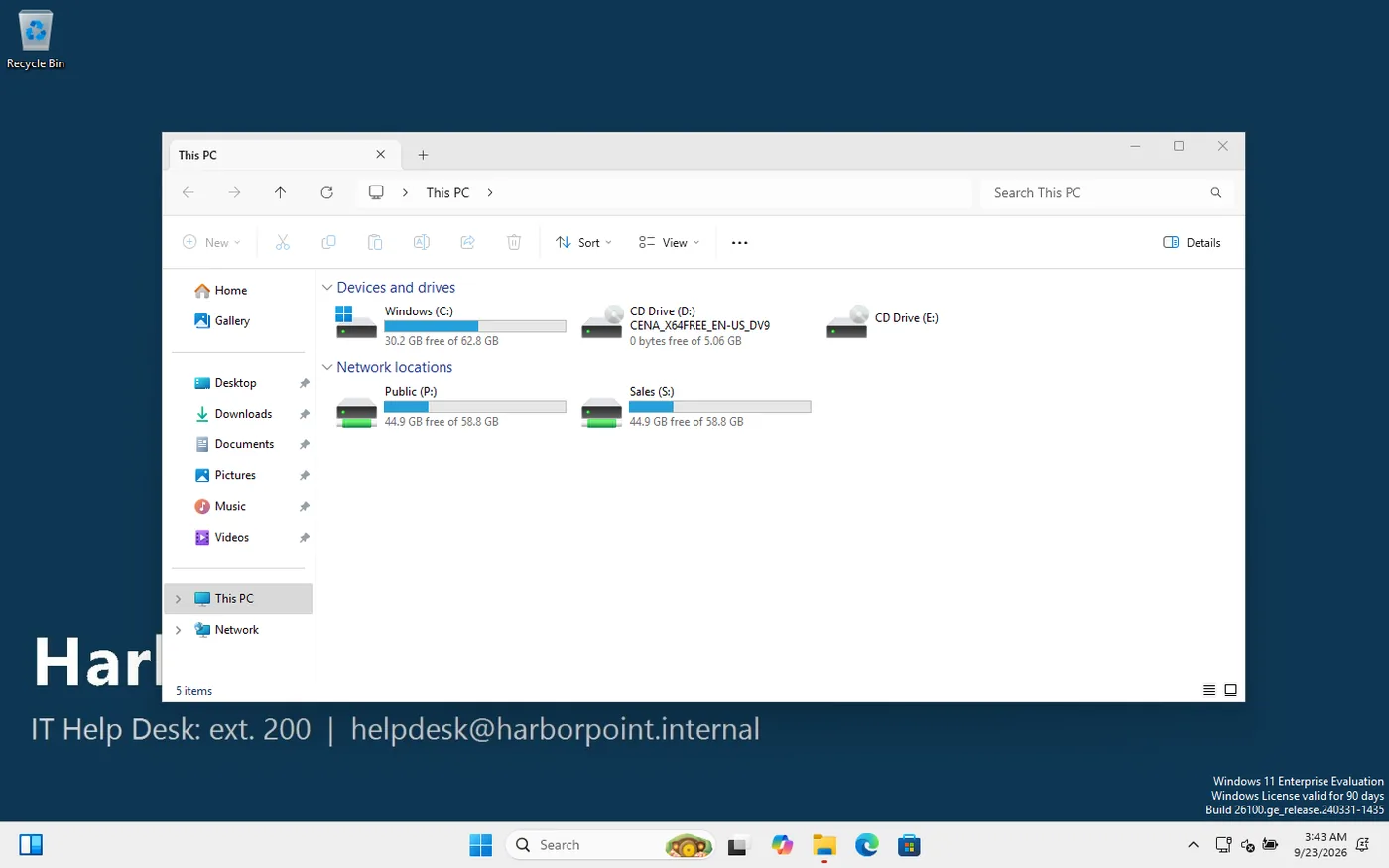

File Explorer showing mapped P and S drives — Drives mapped by group membership, with the company wallpaper.

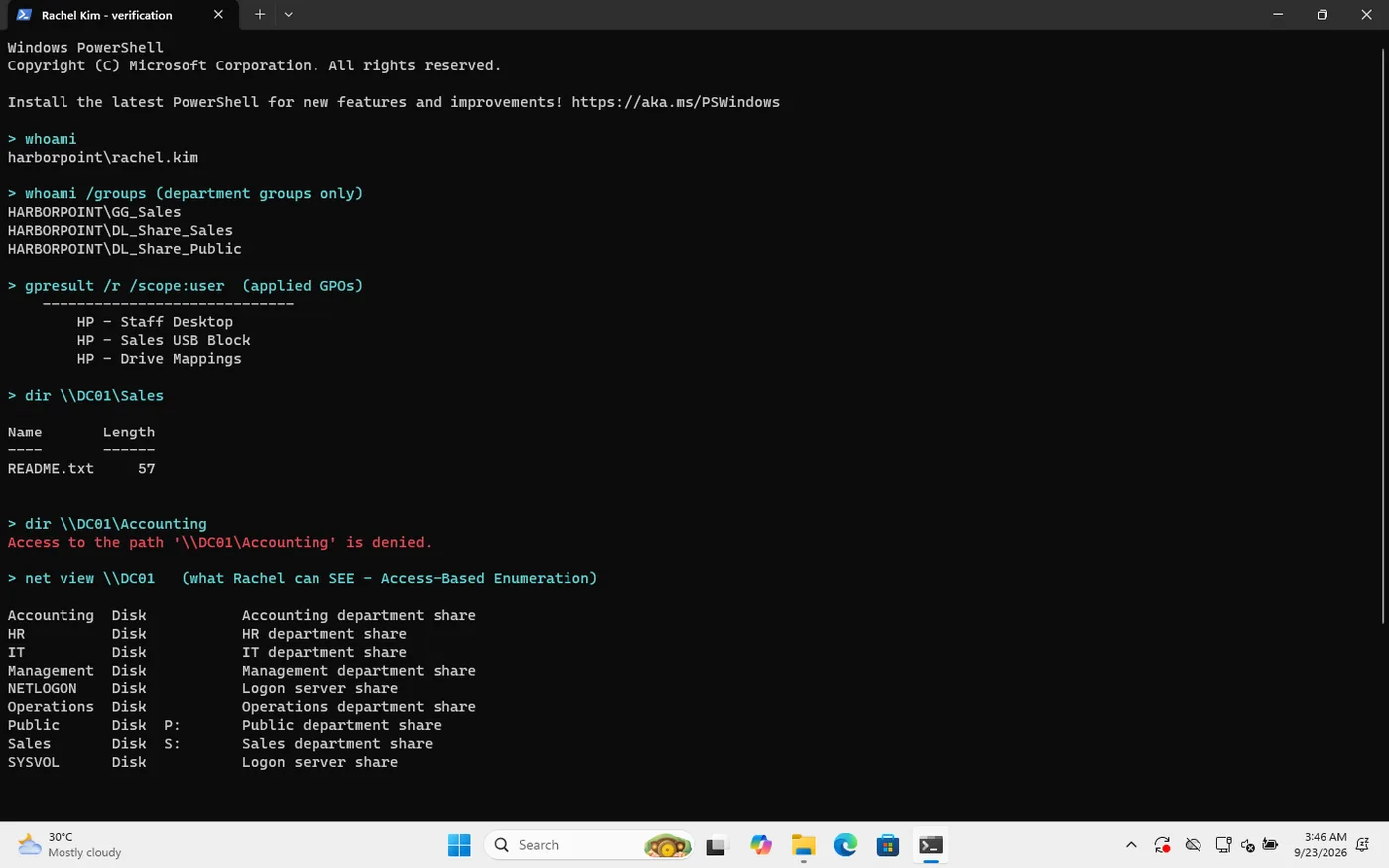

Command output verifying Rachel's access — Checking what she can and can’t reach, as her.

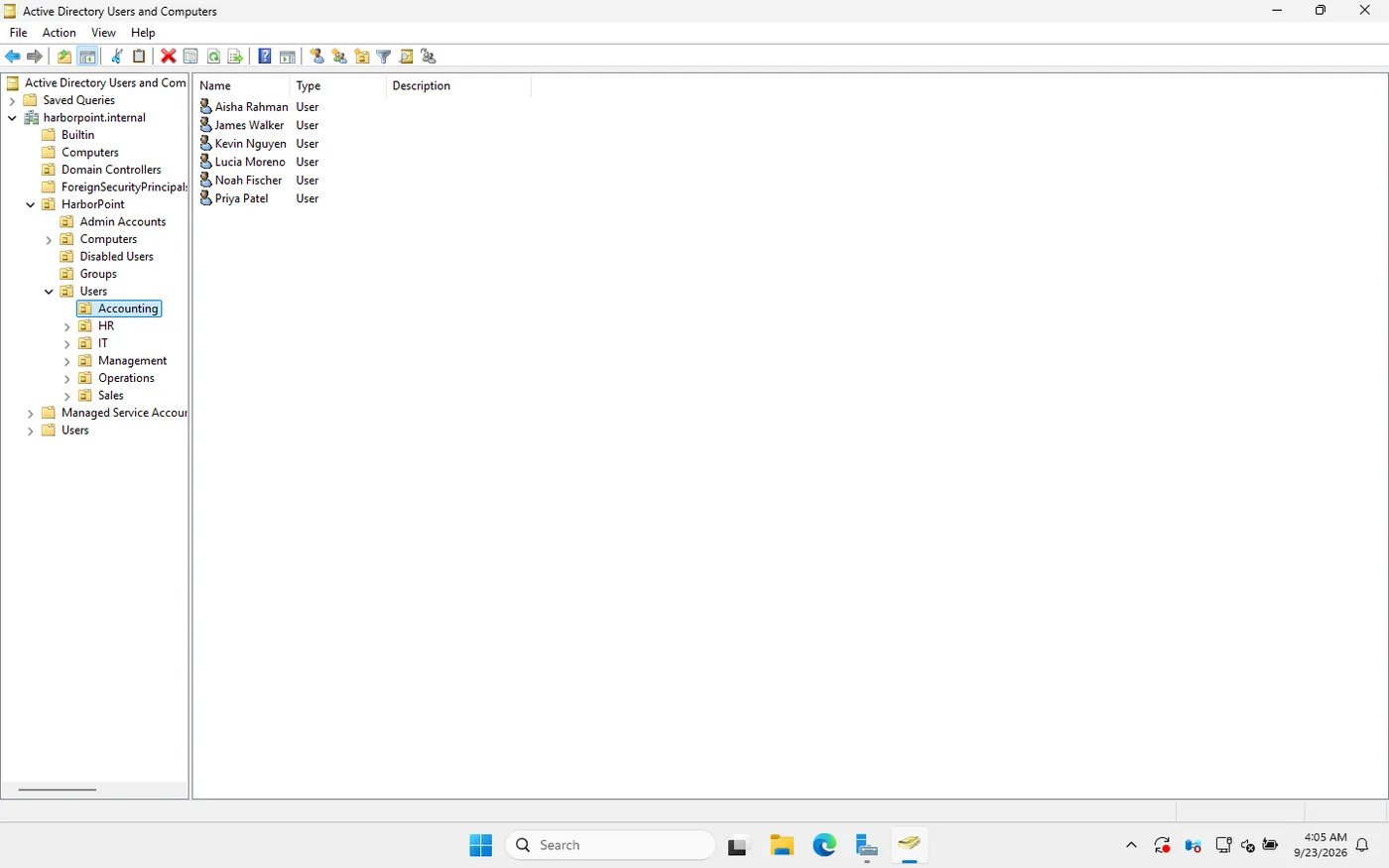

Active Directory Users and Computers OU tree — Department OUs, with admin accounts kept apart.

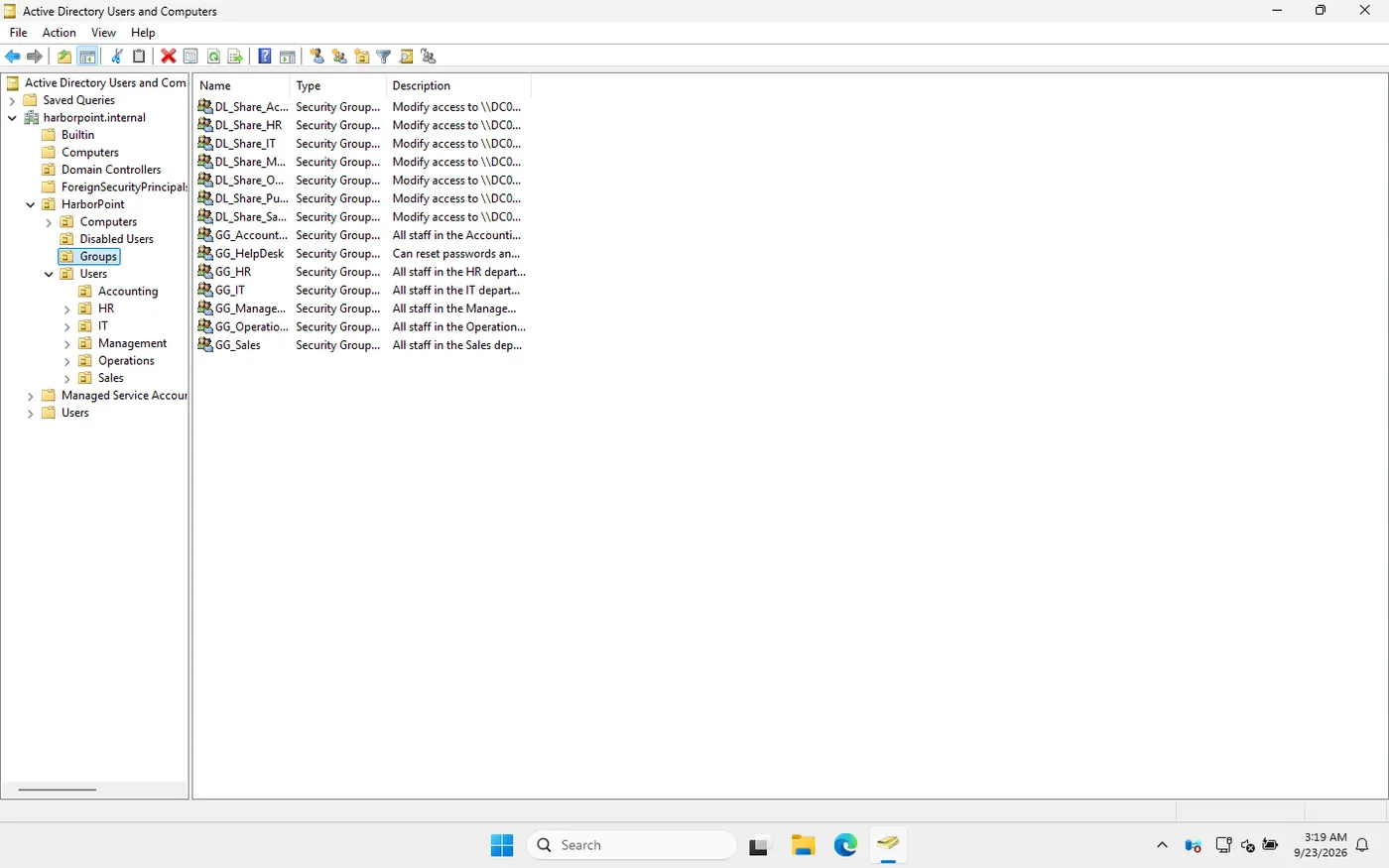

Security groups in Active Directory — Department and share groups, following AGDLP.

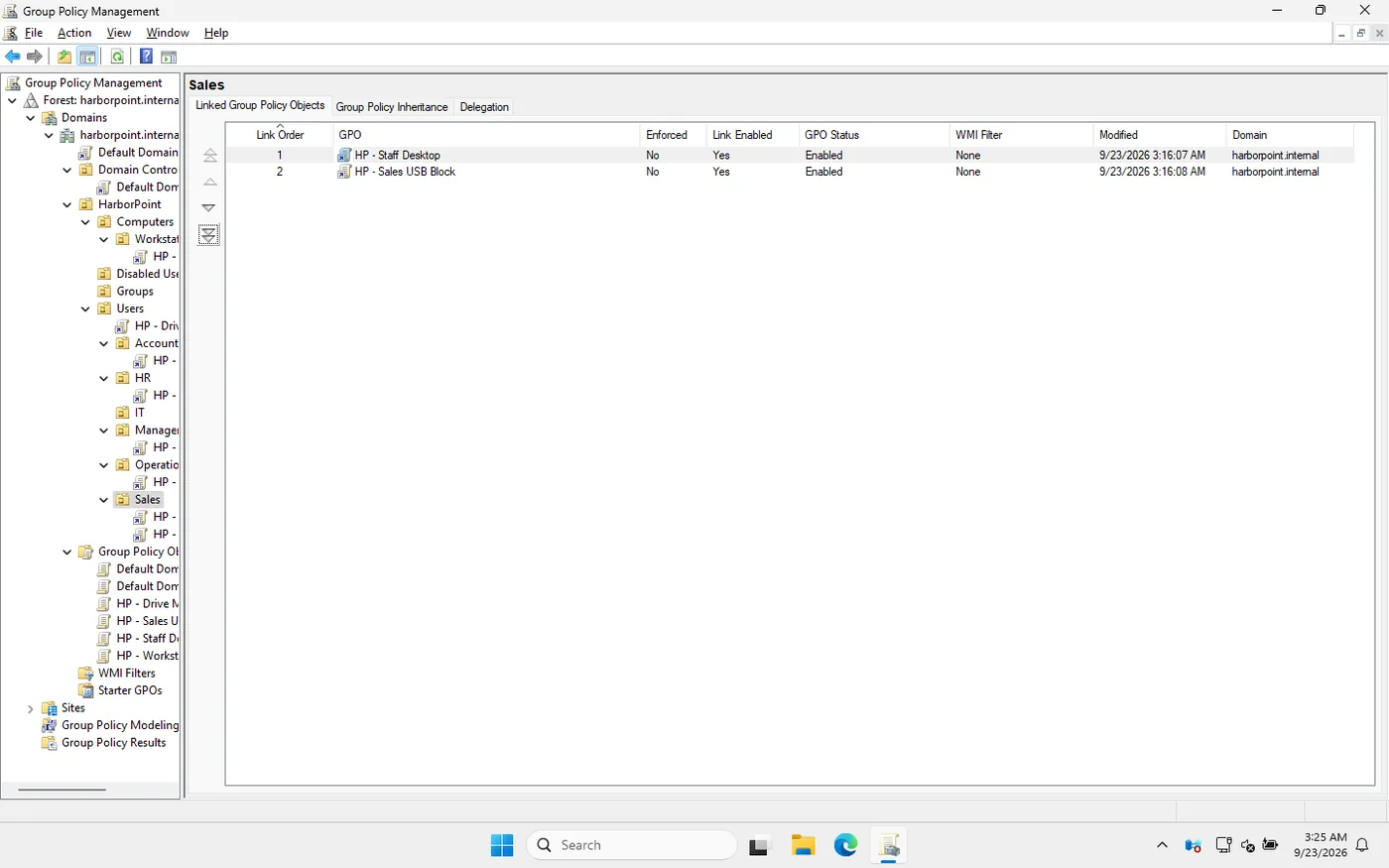

Group Policy Management console — GPOs linked to the Sales OU, including the USB block.

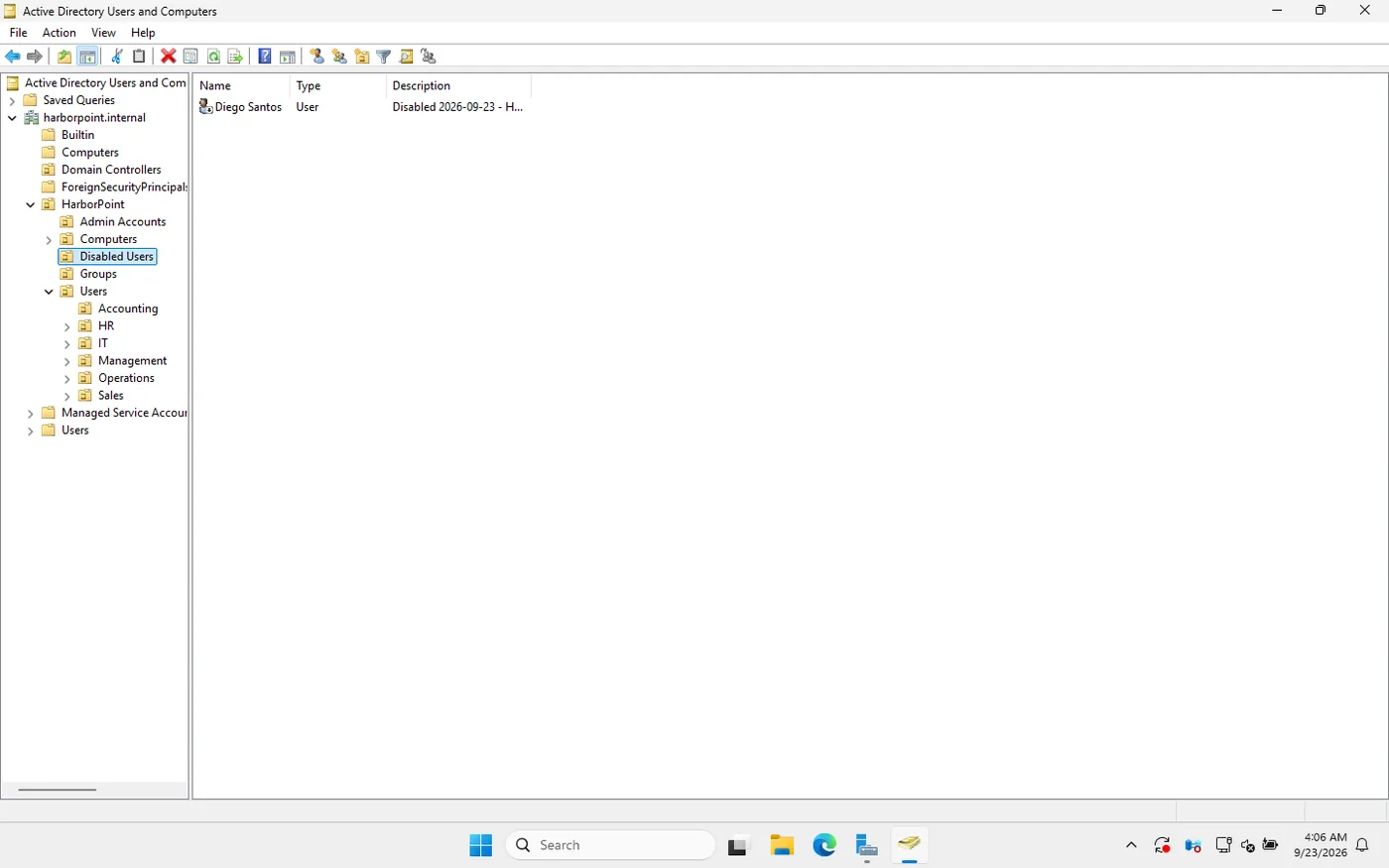

Disabled Users OU — Leavers are disabled and moved, not deleted.

Help desk tickets I worked

Account lockout, traced to the PC that caused it with Security event 4740.
Forgotten password, after verifying the caller: a one-time password from the delegated help desk account, with a change forced at next sign-in.
New starter, created with the onboarding script after the request came from the manager.
Leaver, disabled rather than deleted and removed from their groups, with the ticket number recorded on the account.
Department move, where the user was still in his old department’s group; fixed as a group change so share access followed.
A PC missing the company sign-in message, because it sat in the default Computers container, which can’t have GPOs linked.

What broke, and how I fixed it

Symptom	Cause	Fix
The help desk could reset a Domain Admin’s password	Admin accounts sat in an OU covered by the help desk’s delegation	Moved them to their own OU and re-tested: access denied. Write-up
New DC stuck on “Applying computer settings” for 15+ minutes	DFS Replication failed at first boot, so SYSVOL was never initialised	Restarted DFSR (event 4602), SYSVOL shared, sign-in completed
DC clock nine minutes behind	The first DC had no reliable time source	Configured an external NTP peer and resynced
Server Manager tiles all red	A restart was pending after role installs and updates	Rebooted; all green
Access-Based Enumeration didn’t hide other departments’ shares	ABE hides items inside a share, not share names	Corrected my understanding and the docs

What I’d add next

A second domain controller for redundancy and replication.
A separate file server instead of shares on the DC.
LAPS, so every PC’s local admin password is unique.
Windows Server Backup and the AD Recycle Bin, and practising a restore.

This is a learning lab, not production experience. I built it with AI assistance as a guided walkthrough, then studied each step, re-ran it and documented it in my own words.
